Quick Details

  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: Tianshui
  • Model Number: G7 G10 G20 C6 M16
  • Type: Air Hammer, Air Hammer
  • Average Air Consumption: 26L/s
  • Maximum Torque: 20
  • No-Load Speed: 200
  • Weight of packing: 13kg
  • Packag: 54*18*15cm
  • Use: For rock,concrete breaking
  • Drive type: Pneumatic
  • Certification: ISO9001 CE MA
  • Warranty: 6 months
  • Hot sales: G7 G9 G10 G11
  • Packing: 2pc/case
  • Color: red,black,blue

Packaging & Delivery

Packaging Details: one piece per carton( 456*160*110mm)
Delivery Detail: 5-7 days

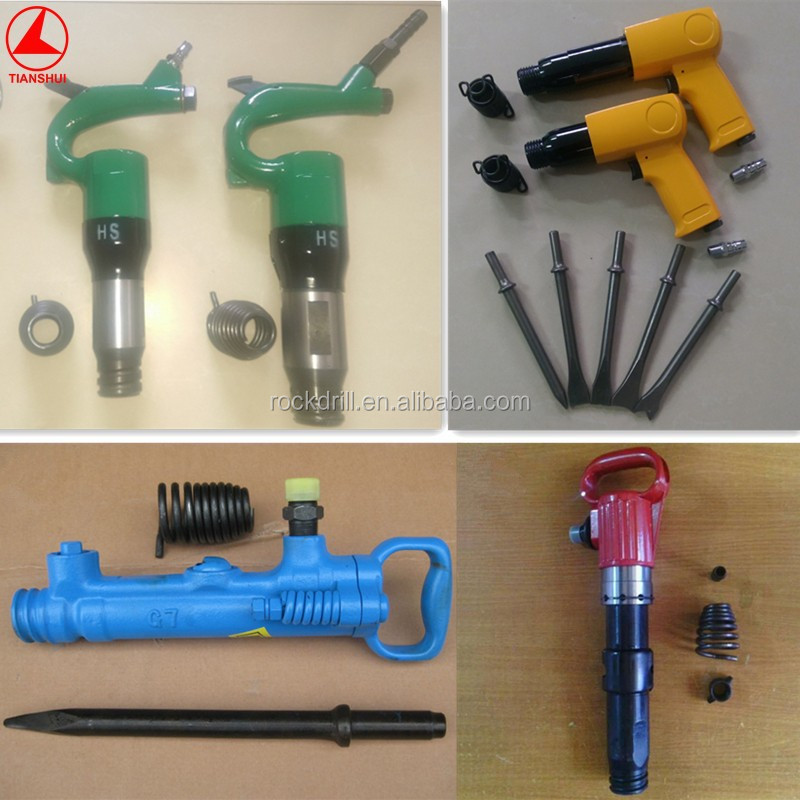

Powerful Pneumatic Air Hammer | Air Chipping Hammer





Pneumatic Air Pick Hammer



Air hammer is normal pneumatic tools. It mainly used in mining, tunnel, quarries and  construction.



Air hammer is suitable for hard rock, concrete drilling, blasting, breaking works.



Air hammer is portable, maneuverable, lower air consumption, higer impact energy.



Air Chipping Hammer



Air chipping hammer widely used for sand cleaning, burr eliminating and riser burning of different types of castings


Air chipping hammer widely used to chip all kind of metal welding seam.


Air chipping hammer used to split,break,dig for all kind of construction stone.





Powerful Pneumatic Air  Hammer | Air Chipping Hammer





G7

G10

G11

C6

C6B

M16

Weight

7.2 kg

10 kg

11 kg

5.6 kg

6.4 kg

7.5 kg

Length

456 mm

570 mm

570 mm

345 mm

412 mm

416 mm

Cylinder Diameter

35 mm

38 mm

38 mm

30 mm

20mm

27 mm

Stroke

120 mm

155 mm

155 mm






Working Pressure

0.4~0.5 MPa

0.5~0.63 MPa

0.5~0.63 MPa

0.5~0.63 MPa

0.5~0.63 MPa

0.63 MPa

Impact Energy

30 J

43 J

43 J






Impact Frequency

21.6 HZ

16 HZ

18 HZ

30 HZ

20 HZ

21 HZ

Air Consumption

m3/min

26 L/s

26 L/s

12 L/s

15 L/s

15 L/s

Air Pipe Diameter

19 mm

16 mm

16 mm

13 mm

13 mm

16 mm



Powerful Pneumatic Air Hammer | Air Chipping Hammer:



Welcome to contact with us:



1. More Than 10 years specialized in rock drill machine and drill tools. 75% of our products are export to Russia, Ukraine, India, Pakistan, South Africa, Malaysia, Philippine, Brazil, Peru, Chile, Mexico and so on.



2. We provide 4 years warranty .



3. As for the packing, we use two-double carton inner packing and special wooden case out packing.



4. If you have any questions, we will reply and solve within 24 hous.
